Electrofusion 90° Elbows
Size Range
SDR
11
IPS
¾" to 8" IPS
(fusible to SDR 11-17)
Dual Rated For
Water: 240 PSI at 73° F Natural Gas: 125 PSI at 73° FSustainable maximum operating pressure
Details
Engineered for durability, built to last – Strongbridge HDPE electrofusion 90° elbows offer a wide range of sizes and pressure classes. Our industrial-grade HDPE electrofusion 90° elbows are engineered for PE3408, PE4710 & PE100 HDPE pipe systems, and manufactured using PE4710/PE100 virgin resin for a leak-free system.
Our heavy-duty 90° elbows are fully pressure-rated for superior performance.
Technical Notes
Engineered for PE3408, PE4710, PE100 HDPE Pipe Systems.
TEGA electrofusion fittings may be fused at ambient temperatures of between 0°C (+32°F) and +45°C (+115°F). If job site conditions are such that the pipe and fitting temperature is below this range, the installer should use a tent and heater to warm the pipe and electrofusion fitting to within the allowable temperature range. Special care should be taken to provide a balanced temperature level of both pipes and fittings before fitment and fusion operation.
Resin Specifications
Strongbridge fittings are manufactured using a bimodal high-density polyethylene (HDPE) compound, engineered for superior performance. This specialized pellet-form compound incorporates stabilizers and carbon black, ensuring long-term durability, UV resistance, and reliable stability in demanding applications.
| Resin Properties | Resin Specification Data |
|---|---|
| Resin type | Polyethylene |
| Resin sub-type | HDPE |
| Density | 960 kg/m³ |
| Melt flow rate (190° C/5 kg) | 0.25 g/10min |
| Tensile modulus (1 mm/min) | 1100 MPa |
| Tensile stress at yield (50 mm/min) | 25 MPa |
| Tensile strain at break | >600 % |
| Carbon black dispersion | ≥ 3 |
| Oxidation induction time (210° C) | ≥ 20 min |
| Carbon black content | 2.0 - 2.5 % |
| Resistance to slow crack growth (9.2 bar 80° C) | >1000 h |
| Resistance to rapid crack propagation(S4 test, Pc at 0° C, Test pipe 250mm, SDR11) | ≥ 10 bar |
Part Numbers & Specs

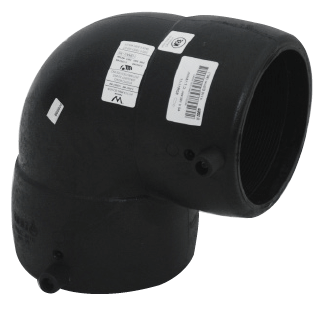

Type A
Type B
Features
High-density polyethylene PE3408, PE4710, PE100
Your best choice for a leak-free system
High chemical resistance
Impact resistance at low temperatures
Resistant to corrosion and abrasion
Lightweight
Easy installation
Suitable for water, fluids, and slurries
Standards & Certs
Download
Specification Sheet
Sales Sheet
Catalog
| Part Number | Size | IPS/DIPS | SDR | Description | Actual Size (d) | L | L1 | Weight (lbs.) | Type |
|---|---|---|---|---|---|---|---|---|---|
| 02-EFX-2209000 | 3/4" | IPS | 11 | SBI 3/4" IPS EF Elbow 90, SDR11, PE100/4710, 240psi Water, 125psi Gas, NSF 61 | 1.05 | 3.86 | 1.50 | 0.15 | A |
| 02-EFX-2209002 | 1" | CTS | 11 | SBI 1" CTS EF Elbow 90, SDR11, PE100/4710, 240psi Water, 125psi Gas, NSF 61 | 1.13 | 4.29 | 1.61 | 0.31 | A |
| 02-EFX-2209003 | 1" | IPS | 11 | SBI 1" IPS EF Elbow 90, SDR11, PE100/4710, 240psi Water, 125psi Gas, NSF 61 | 1.31 | 4.29 | 1.61 | 0.22 | A |
| 02-EFX-2209004 | 1-1/4" | IPS | 11 | SBI 1-1/4" IPS EF Elbow 90, SDR11, PE100/4710, 240psi Water, 125psi Gas, NSF 61 | 1.66 | 5.16 | 1.85 | 0.37 | A |
| 02-EFX-2209005 | 1-1/2" | IPS | 11 | SBI 1-1/2" IPS EF Elbow 90, SDR11, PE100/4710, 240psi Water, 125psi Gas, NSF 61 | 1.90 | 6.10 | 2.01 | 0.62 | A |
| 02-EFX-2209006 | 2" | IPS | 11 | SBI 2" IPS EF Elbow 90, SDR11, PE100/4710, 240psi Water, 125psi Gas, NSF 61 | 2.37 | 7.44 | 1.89 | 1.15 | A |
| 02-EFX-2209007 | 3" | IPS | 11 | SBI 3" IPS EF Elbow 90, SDR11, PE100/4710, 240psi Water, 125psi Gas, NSF 61 | 3.50 | 9.53 | 2.76 | 2.45 | A |
| 02-EFX-2209008 | 4" | IPS | 11 | SBI 4" IPS EF Elbow 90, SDR11, PE100/4710, 240psi Water, 125psi Gas, NSF 61 | 4.50 | 11.69 | 3.23 | 6.61 | A |
| 02-EFX-2209009 | 6" | IPS | 11 | SBI 6" IPS EF Elbow 90, SDR11, PE100/4710, 240psi Water, 125psi Gas, NSF 61 | 6.63 | 17.14 | 4.75 | 5.50 | B |
| 02-EFX-2209023 | 8" | IPS | 11 | SBI 8" IPS EF Elbow 90, SDR11, PE100/4710, 240psi Water, 125psi Gas, NSF 61 | 8.26 | 17.22 | 4.92 | 37.00 | A |
