Molded Reducers
Size Range
SDR
7
IPS
2" x 1" IPS to
12" x 10" IPS
Dual Rated For
Water: 335 PSI at 73° F Natural Gas: 125 PSI at 73° FSustainable maximum operating pressure
SDR
9
IPS
3" x 2" IPS to
12" x 10" IPS
Dual Rated For
Water: 250 PSI at 73° F Natural Gas: 125 PSI at 73° FSustainable maximum operating pressure
SDR
9
DIPS
4" x 3" DIPS to
6" x 6" DIPS
Dual Rated For
Water: 250 PSI at 73° F Natural Gas: 125 PSI at 73° FSustainable maximum operating pressure
SDR
11
IPS
3" x 2" IPS to
12" x 10" IPS
Dual Rated For
Water: 200 PSI at 73° F Natural Gas: 100 PSI at 73° FSustainable maximum operating pressure
SDR
11
DIPS
3" x 3" DIPS to
8" x 6" DIPS
Dual Rated For
Water: 200 PSI at 73° F Natural Gas: 100 PSI at 73° FSustainable maximum operating pressure
SDR
17
IPS
3" x 2" IPS to
12" x 10" IPS
Dual Rated For
Water: 125 PSI at 73° F Natural Gas: 64 PSI at 73° FSustainable maximum operating pressure
SDR
17
DIPS
4" x 2" DIPS to
8" x 6" DIPS
Dual Rated For
Water: 125 PSI at 73° F Natural Gas: 64 PSI at 73° FSustainable maximum operating pressure
Details

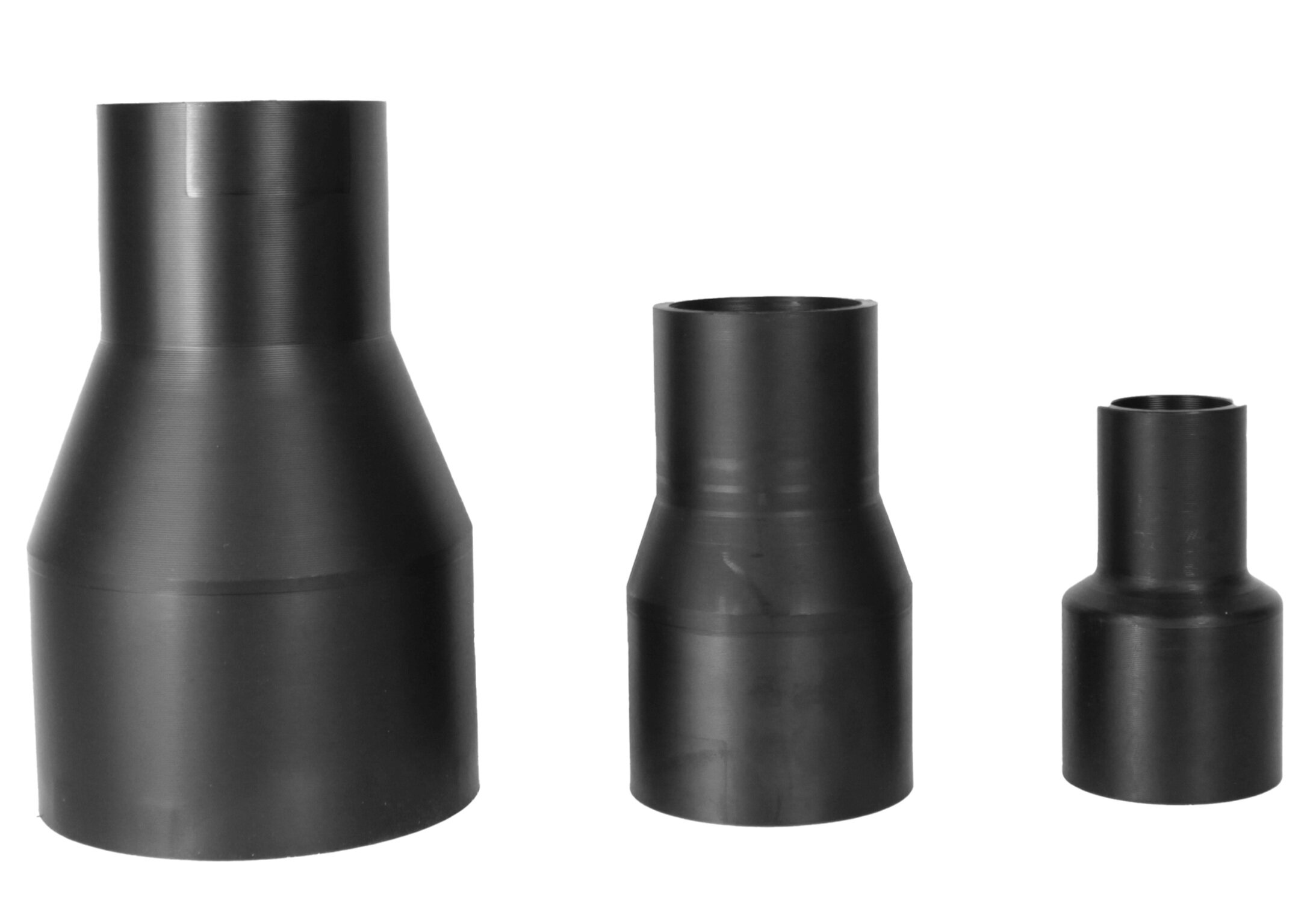

Engineered for durability, built to last – Strongbridge HDPE molded butt fusion reducers are engineered for extreme durability and are manufactured using high-density polyethylene PE4710 virgin resin. Our heavy-duty molded reducers are fully pressure-rated for superior performance.
HDPE molded reducers are essential components in piping systems that enable the connection of pipes with different diameters. They feature a tapered design, where one end has a larger diameter, and the other end has a smaller diameter. This design allows for the transition and redirection of fluid or gas flow between pipes of varying sizes.
Technical Notes
Engineered for PE4710/PE100 HDPE Pipe Systems.
Part Numbers & Specs
Features
High-density polyethylene PE4710/PE100
Your best choice for a leak-free system
High chemical resistance
Impact resistance at low temperatures
Resistant to corrosion and abrasion
Lightweight
Easy installation
Suitable for water, fluids, and slurries
Butt fusion, electrofusion, and mechanical connection ready
Standards & Certs
Manufactured in accordance with:
Downloads
Specification Sheet
Sales Sheet
Catalog
| Part Number | Size | IPS/DIPS | SDR | Description | Actual Size (D1x D2) | A | B | C | Weight (lbs.) |
|---|---|---|---|---|---|---|---|---|---|
| 09-BFR-2707042 | 6" IPS x 4" IPS | IPSxIPS | 9 | SBI 6" IPS x 4" IPS, Molded Long Reducer, SDR9, PE100/4710, 250psi water, 125psi gas, NSF 61 | 6.63 x 4.50 | 8.46 | 4.00 | 3.53 | 3.27 |
| 03-BFR-2707039 | 6" IPS x 4" IPS | IPSxIPS | 11 | SBI 6" IPS x 4" IPS, Molded Reducer, SDR11, PE100/4710, 200psi water, 100psi gas, NSF 61 | 6.63 x 4.50 | 11.05 | 5.20 | 3.58 | 4.23 |
| 03-BFR-2707040 | 6" IPS x 4" IPS | IPSxIPS | 17 | SBI 6" IPS x 4" IPS, Molded Long Reducer, SDR17, PE100/4710, 125psi water, 64psi gas, NSF 61 | 6.63 x 4.50 | 8.46 | 4.00 | 3.58 | 1.96 |
| 09-BFR-2707043 | 8" DIPS x 6" DIPS | DIPSxDIPS | 11 | SBI 8" DIPS x 6" DIPS, Molded Reducer, SDR11, PE100/4710, 200psi water, 100psi gas, NSF 61 | 9.05 x 6.90 | 11.00 | 5.10 | 3.83 | 10.00 |
| 03-BFR-2707049 | 8" IPS x 4" IPS | IPSxIPS | 11 | SBI 8" IPS x 4" IPS, Molded Reducer, SDR11, PE100/4710, 200psi water, 100psi gas, NSF 61 | 8.63 x 4.50 | 11.43 | 4.65 | 3.55 | 6.80 |
| 03-BFR-2707050 | 8" IPS x 4" IPS | IPSxIPS | 17 | SBI 8" IPS x 4" IPS, Molded Long Reducer, SDR17, PE100/4710, 125psi water, 64psi gas, NSF 61 | 8.63 x 4.50 | 10.83 | 5.90 | 3.55 | 5.00 |
| 09-BFR-2707056 | 8" IPS x 6" IPS | IPSxIPS | 9 | SBI 8" IPS x 6" IPS, Molded Long Reducer, SDR9, PE100/4710, 250psi water, 125psi gas, NSF 61 | 8.63 x 6.63 | 11.42 | 5.98 | 4.45 | 8.36 |
| 03-BFR-2707053 | 8" IPS x 6" IPS | IPSxIPS | 11 | SBI 8" IPS x 6" IPS, Molded Reducer, SDR11, PE100/4710, 200psi water, 100psi gas, NSF 61 | 8.63 x 6.63 | 11.00 | 5.15 | 3.67 | 9.25 |
| 03-BFR-2707054 | 8" IPS x 6" IPS | IPSxIPS | 17 | SBI 8" IPS x 6" IPS, Molded Long Reducer, SDR17, PE100/4710, 125psi water, 64psi gas, NSF 61 | 8.63 x 6.62 | 11.42 | 5.98 | 4.45 | 5.06 |
| 09-BFR-2707007 | 3" IPS x 2" IPS | IPSxIPS | 9 | SBI 3" IPS x 2" IPS, Molded Reducer, SDR9, PE100/4710, 250psi water, 125psi gas, NSF 61 | 3.50 x 2.38 | 6.90 | 3.18 | 2.53 | 0.68 |
| 03-BFR-2707006 | 3" IPS x 2" IPS | IPSxIPS | 11 | SBI 3" IPS x 2" IPS, Molded Reducer, SDR11, PE100/4710, 200psi water, 100psi gas, NSF 61 | 3.50 x 2.38 | 6.90 | 3.18 | 2.53 | 0.66 |
| 03-BFR-2707005 | 3" IPS x 2" IPS | IPSxIPS | 17 | SBI 3" IPS x 2" IPS, Molded Reducer, SDR17, PE100/4710, 125psi water, 64psi gas, NSF 61 | 3.50 x 2.38 | 6.90 | 2.84 | 2.53 | 0.45 |
| 03-BFR-2707023 | 4" IPS x 2" IPS | IPSxIPS | 9 | SBI 4" IPS x 2" IPS, Molded Reducer, SDR9, PE100/4710, 250psi water, 125psi gas, NSF 61 | 4.50 x 2.38 | 8.00 | 3.00 | 2.40 | 1.33 |
| 03-BFR-2707021 | 4" IPS x 2" IPS | IPSxIPS | 11 | SBI 4" IPS x 2" IPS, Molded Reducer, SDR11, PE100/4710, 200psi water, 100psi gas, NSF 61 | 4.50 x 2.38 | 8.00 | 3.00 | 2.40 | 1.17 |
| 03-BFR-2707020 | 4" IPS x 2" IPS | IPSxIPS | 17 | SBI 4" IPS x 2" IPS, Molded Reducer, SDR17, PE100/4710, 125psi water, 64psi gas, NSF 61 | 4.50 x 2.38 | 8.00 | 3.96 | 2.40 | 0.81 |
| 03-BFR-2707025 | 4" IPS x 3" IPS | IPSxIPS | 11 | SBI 4" IPS x 3" IPS, Molded Reducer, SDR11, PE100/4710, 200psi water, 100psi gas, NSF 61 | 4.50 x 3.50 | 7.58 | 3.00 | 3.00 | 1.43 |
| 03-BFR-2707024 | 4" IPS x 3" IPS | IPSxIPS | 17 | SBI 4" IPS x 3" IPS, Molded Reducer, SDR17, PE4710, 125psi water, 64psi gas, NSF 61 | 4.50 x 3.50 | 7.58 | 4.02 | 3.00 | 0.97 |
| 09-BFR-2707041 | 6" IPS x 4" IPS | IPSxIPS | 7 | SBI 6" IPS x 4" IPS, Molded Reducer, SDR7, PE100/4710, 335psi water, 125psi gas, NSF 61 | 6.63 x 4.50 | 8.46 | 4.00 | 3.53 | 6.04 |
| 09-BFR-2707070 | 10" IPS x 6" IPS | IPSxIPS | 9 | SBI 10" IPS x 6" IPS, Molded Reducer, SDR9, PE4710, 250psi water, 125psi gas, NSF 61 | 10.75 x 6.62 | 11.81 | 5.98 | 4.45 | 10.26 |
| 09-BFR-2707065 | 10" IPS x 6" IPS | IPSxIPS | 17 | SBI 10" IPS x 6" IPS, Molded Reducer, SDR17, PE4710, 125psi water, 64psi gas, NSF 61 | 10.75 x 6.62 | 11.81 | 5.98 | 4.45 | 8.00 |
| 09-BFR-2707072 | 10" IPS x 8" IPS | IPSxIPS | 9 | SBI 10" IPS x 8" IPS, Molded Reducer, SDR9, PE4710, 250psi water, 125psi gas, NSF 61 | 10.75 x 8.62 | 12.01 | 5.98 | 4.50 | 10.26 |
| 09-BFR-2707105 | 10" IPS x 8" IPS | IPSxIPS | 11 | SBI 10" IPS x 8" IPS, Molded Reducer, SDR11, PE100/4710, 200psi water, 100psi gas, NSF 61 | 10.75 x 8.62 | 12.01 | 5.98 | 4.50 | 11.66 |
| 09-BFR-2707105 | 10" IPS x 8" IPS | IPSxIPS | 17 | SBI 10" IPS x 8" IPS, Molded Reducer, SDR17, PE4710, 125psi water, 64psi gas, NSF 61 | 10.75 x 8.62 | 12.01 | 5.98 | 5.00 | 8.14 |
| 09-BFR-2707125 | 12" IPS x 6" IPS | IPSxIPS | 9 | SBI 12" IPS x 6" IPS, Molded Reducer, SDR9, PE4710, 250psi water, 125psi gas, NSF 61 | 12.75 x 6.62 | 13.62 | 6.54 | 4.72 | 17.02 |
| 09-BFR-2707110 | 12" IPS x 6" IPS | IPSxIPS | 11 | SBI 12" IPS x 6" IPS, Molded Reducer, SDR11, PE100/4710, 200psi water, 100psi gas, NSF 61 | 12.75 x 6.62 | 13.62 | 6.54 | 4.72 | 15.14 |
| 09-BFR-2707111 | 12" IPS x 6" IPS | IPSxIPS | 17 | SBI 12" IPS x 6" IPS, Molded Reducer, SDR17, PE4710, 125psi water, 64psi gas, NSF 61 | 12.75 x 6.62 | 13.62 | 6.54 | 4.72 | 11.00 |
| 09-BFR-2707117 | 12" IPS x 8" IPS | IPSxIPS | 9 | SBI 12" IPS x 8" IPS, Molded Reducer, SDR9, PE4710, 250psi water, 125psi gas, NSF 61 | 12.75 x 8.62 | 13.46 | 6.52 | 5.51 | 19.02 |
| 09-BFR-2707115 | 12" IPS x 8" IPS | IPSxIPS | 11 | SBI 12" IPS x 8" IPS, Molded Reducer, SDR11, PE100/4710, 200psi water, 100psi gas, NSF 61 | 12.75 x 8.62 | 13.46 | 6.52 | 5.51 | 15.88 |
| 09-BFR-2707116 | 12" IPS x 8" IPS | IPSxIPS | 17 | SBI 12" IPS x 8" IPS, Molded Reducer, SDR17, PE4710, 125psi water, 64psi gas, NSF 61 | 12.75 x 8.62 | 13.40 | 6.51 | 5.51 | 11.82 |
| 09-BFR-2707126 | 12" IPS x 10" IPS | IPSxIPS | 9 | SBI 12" IPS x 10" IPS, Molded Reducer, SDR9, PE4710, 250psi water, 125psi gas, NSF 61 | 12.75 x 10.75 | 13.46 | 6.54 | 5.51 | 21.45 |
| 09-BFR-2707120 | 12" IPS x 10" IPS | IPSxIPS | 11 | SBI 12" IPS x 10" IPS, Molded Reducer, SDR11, PE100/4710, 200psi water, 100psi gas, NSF 61 | 12.75 x 10.75 | 13.46 | 6.52 | 5.98 | 18.69 |
| 09-BFR-2707113 | 12" IPS x 10" IPS | IPSxIPS | 17 | SBI 12" IPS x 10" IPS, Molded Reducer, SDR17, PE4710, 125psi water, 64psi gas, NSF 61 | 12.75 x 10.75 | 13.46 | 6.50 | 5.98 | 12.22 |
| 03-BFR-2707034 | 6" DIPS x 4" DIPS | DIPSxDIPS | 9 | SBI 6" DIPS x 4" DIPS, Molded Long Reducer, SDR9, PE4710, 250psi water, 125psi gas, NSF 61 | 6.90 x 4.80 | 11.13 | 4.83 | 3.55 | 5.30 |
| 03-BFR-2707033 | 6" DIPS x 4" IPS | DIPSxIPS | 9 | SBI 6" DIPS x 4" IPS, Molded Long Reducer, SDR9, PE4710, 250psi water, 125psi gas, NSF 61 | 6.90 x 4.80 | 11.13 | 4.83 | 3.55 | 5.20 |
| 03-BFR-2707037 | 6" DIPS x 6" IPS | DIPSxIPS | 9 | SBI 6" DIPS x 6" IPS, Molded Long Reducer, SDR9, PE4710, 250psi water, 125psi gas, NSF 61 | 6.90 x 6.63 | 6.68 | 5.00 | 1.58 | 5.40 |
| 03-BFR-2707044 | 8" DIPS x 6" DIPS | DIPSxDIPS | 17 | SBI 8" DIPS x 6" DIPS, Molded Long Reducer, SDR17, PE4710, 125psi water, 64psi gas, NSF 61 | 9.05 x 6.90 | 11.00 | 5.10 | 3.83 | 9.26 |
| 03-BFR-2707046 | 8" DIPS x 6" IPS | DIPSxIPS | 11 | SBI 8" DIPS x 6" IPS, Molded Reducer, SDR11, PE100/4710, 200psi water, 100psi gas, NSF 61 | 9.05 x 6.63 | 11.00 | 4.44 | 3.56 | 9.40 |
| 03-BFR-2707047 | 8" DIPS x 6" IPS | DIPSxIPS | 17 | SBI 8" DIPS x 6" IPS, Molded Long Reducer, SDR17, PE4710, 125psi water, 64psi gas, NSF 61 | 9.05 x 6.90 | 11.00 | 5.10 | 3.83 | 9.26 |
| 03-BFR-2707055 | 8" IPS x 6" IPS | IPSxIPS | 7 | SBI 8" IPS x 6" IPS, Molded Reducer, SDR7, PE100/4710, 335psi water, 125psi gas, NSF 61 | 8.63 x 6.63 | 11.00 | 5.15 | 3.68 | 11.57 |
| 03-BFR-2707002 | 2" IPS x 1" IPS | IPSxIPS | 7 | SBI 2" IPS x 1" IPS, Molded Reducer, SDR7, PE100/4710, 335psi water, 125psi gas, NSF 61 | 2.38 x 1.32 | 6.15 | 3.00 | 1.53 | 0.42 |
| 03-BFR-2707004 | 3" DIPS x 3" IPS | DIPSxIPS | 11 | SBI 3" DIPS x 3" IPS, Molded Reducer, SDR11, PE100/4710, 200psi water, 100psi gas, NSF 61 | 3.96 x 3.50 | 6.08 | 2.10 | 3.90 | 1.00 |
| 03-BFR-2707013 | 4" DIPS x 3" DIPS | DIPSxDIPS | 9 | SBI 4" DIPS x 3" DIPS, Molded Reducer, SDR9, PE4710, 250psi water, 125psi gas, NSF 61 | 4.80 x 3.49 | 8.50 | 2.63 | 2.50 | 1.80 |
| 03-BFR-2707011 | 4" DIPS x 3" DIPS | DIPSxDIPS | 17 | SBI 4" DIPS x 3" DIPS, Molded Long Reducer, SDR17, PE4710, 125psi water, 64psi gas, NSF 61 | 4.80 x 3.49 | 7.58 | 3.08 | 2.85 | 1.50 |
| 03-BFR-2707016 | 4" DIPS x 3" IPS | DIPSxIPS | 9 | SBI 4" DIPS x 3" IPS, Molded Reducer, SDR9, PE4710, 250psi water, 125psi gas, NSF 61 | 4.80 x 3.50 | 7.58 | 3.08 | 2.85 | 1.80 |
| 03-BFR-2707014 | 4" DIPS x 3" IPS | DIPSxIPS | 17 | SBI 4" DIPS x 3" IPS, Molded Long Reducer, SDR17, PE4710, 125psi water, 64psi gas, NSF 61 | 4.80 x 3.50 | 7.58 | 3.08 | 2.85 | 1.20 |
| 03-BFR-2707017 | 4" DIPS x 4" IPS | DIPSxIPS | 17 | SBI 4" DIPS x 4" IPS, Molded Long Reducer, SDR17, PE4710, 125psi water, 64psi gas, NSF 61 | 4.80 x 4.50 | 6.70 | 1.60 | 5.05 | 1.20 |
| 03-BFR-2707022 | 4" IPS x 2" IPS | IPSxIPS | 7 | SBI 4" IPS x 2" IPS, Molded Reducer, SDR7, PE100/4710, 335psi water, 125psi gas, NSF 61 | 4.50 x 2.38 | 8.00 | 3.00 | 2.40 | 1.95 |
| 03-BFR-2707023 | 4" IPS x 2" IPS | IPSxIPS | 9 | SBI 4" IPS x 2" IPS, Molded Reducer, SDR9, PE4710, 250psi water, 125psi gas, NSF 61 | 4.50 x 2.38 | 8.00 | 3.00 | 2.40 | 1.33 |
| 03-BFR-2707026 | 4" IPS x 3" IPS | IPSxIPS | 9 | SBI 4" IPS x 3" IPS, Molded Reducer, SDR9, PE4710, 250psi water, 125psi gas, NSF 61 | 4.50 x 3.50 | 7.58 | 3.00 | 3.00 | 1.48 |
| 03-BFR-2707024 | 4" IPS x 3" IPS | IPSxIPS | 17 | SBI 4" IPS x 3" IPS, Molded Reducer, SDR17, PE4710, 125psi water, 64psi gas, NSF 61 | 4.50 x 3.50 | 7.58 | 4.02 | 3.00 | 0.97 |
| 03-BFR-2707030 | 6" DIPS x 4" IPS | DIPSxIPS | 11 | SBI 6" DIPS x 4" IPS, Molded Reducer, SDR11, PE100/4710, 200psi water, 100psi gas, NSF 61 | 6.90 x 4.48 | 10.75 | 4.31 | 3.63 | 5.20 |
| 03-BFR-2707062 | 12" DIPS x 10" DIPS | DIPSxDIPS | 9 | SBI 12" DIPS x 10" DIPS, Molded Reducer, SDR9, PE4710, 250psi water, 125psi gas, NSF 61 | 13.20 x 11.10 | 4.25 | 2.10 | 1.05 | N/A |
| 03-BFR-2707061 | 12" DIPS x 10" DIPS | DIPSxDIPS | 11 | SBI 12" DIPS x 10" DIPS, Molded Reducer, SDR11, PE100/4710, 200psi water, 100psi gas, NSF 61 | 13.20 x 11.10 | 4.25 | 2.10 | 1.05 | N/A |
| 03-BFR-2707063 | 14" DIPS x 12" DIPS | DIPSxDIPS | 11 | SBI 14" DIPS x 12" DIPS, Molded Reducer, SDR11, PE100/4710, 200psi water, 100psi gas, NSF 61 | 13.20 x 15.30 | 4.25 | 2.50 | 1.50 | N/A |
| 09-BFR-2707078 | 3" IPS x 2" IPS | IPSxIPS | 7 | SBI 3" IPS x 2" IPS, Molded Reducer, SDR7, PE100/4710, 335psi water, 125psi gas, NSF 61 | 3.50 x 2.38 | 6.06 | 2.84 | 2.60 | 1.16 |
| 09-BFR-2707079 | 4" IPS x 3" IPS | IPSxIPS | 7 | SBI 4" IPS x 3" IPS, Molded Reducer, SDR7, PE100/4710, 335psi water, 125psi gas, NSF 61 | 4.50 x 3.50 | 7.87 | 4.09 | 3.00 | 1.96 |
| 09-BFR-2707082 | 10" IPS x 8" IPS | IPSxIPS | 7 | SBI 10" IPS x 8" IPS, Molded Reducer, SDR7, PE100/4710, 335psi water, 125psi gas, NSF 61 | 10.75 x 8.63 | 12.01 | 5.98 | 5.11 | 30.47 |
| 09-BFR-2707083 | 12" IPS x 10" IPS | IPSxIPS | 7 | SBI 12" IPS x 10" IPS, Molded Reducer, SDR7, PE100/4710, 335psi water, 125psi gas, NSF 61 | 12.75 x 10.75 | 15.83 | 6.50 | 5.11 | 31.24 |
