Molded Reducing Tees
Size Range
SDR
7
IPS
3" x 2" IPS to
12" x 10" IPS
COMING SOON!
Dual Rated For
Water: 335 PSI at 73° F Natural Gas: 100 PSI at 73° FSustainable maximum operating pressure
SDR
9
IPS
3" x 2" IPS to
12" x 10" IPS
COMING SOON!
Dual Rated For
Water: 250 PSI at 73° F Natural Gas: 100 PSI at 73° FSustainable maximum operating pressure
SDR
11
IPS
3" x 2" IPS to
12" x 10" IPS
Dual Rated For
Water: 200 PSI at 73° F Natural Gas: 100 PSI at 73° FSustainable maximum operating pressure
SDR
11
DIPS
8" x 6" DIPS
NOW AVAILABLE!
Dual Rated For
Water: 200 PSI at 73° F Natural Gas: 100 PSI at 73° FSustainable maximum operating pressure
SDR
17
IPS
3" x 2" IPS to
12" x 10" IPS
Dual Rated For
Water: 125 PSI at 73° F Natural Gas: 64 PSI at 73° FSustainable maximum operating pressure
Details

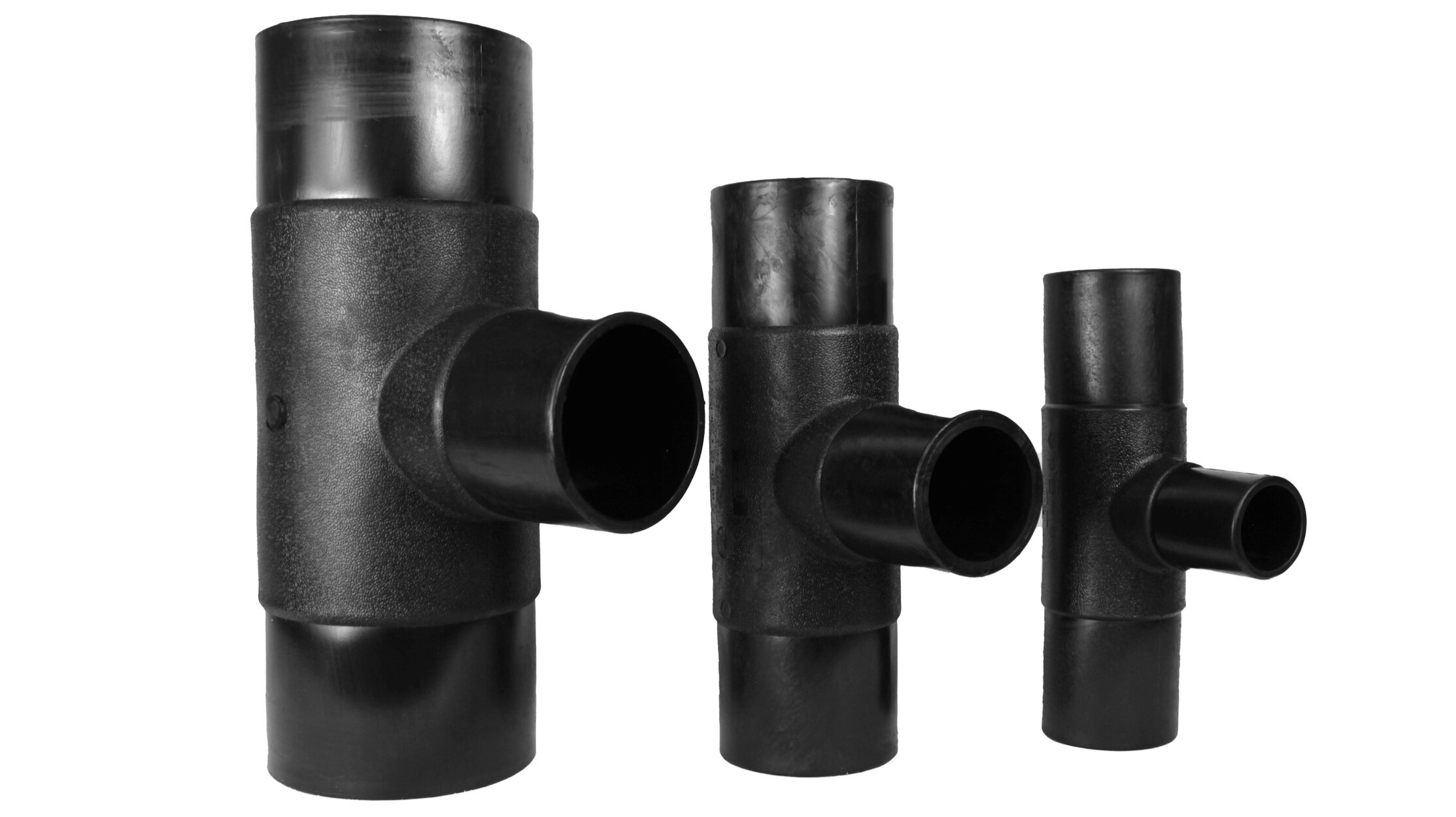

Engineered for durability, built to last – Strongbridge HDPE molded butt fusion reducing tees are engineered for extreme durability and are manufactured using high-density polyethylene PE4710 / PE100 virgin resin. Our molded heavy-duty reducing tees are fully pressure-rated for superior performance.
HDPE molded butt fusion reducing tee fittings are essential components in piping systems that enable the connection of pipes with different diameters. They feature a T-shaped configuration with one inlet and two outlets, where the outlet diameters are smaller than the inlet diameter.
This design allows for the redistribution or diversion of fluid or gas in a system with varying pipe sizes.
Technical Notes
Engineered for PE100, PE80, PE4710, PE3408 HDPE Pipe Systems.
Resin Specifications
Strongbridge fittings are manufactured using a bimodal high-density polyethylene (HDPE) compound, engineered for superior performance. This specialized pellet-form compound incorporates stabilizers and carbon black, ensuring long-term durability, UV resistance, and reliable stability in demanding applications.
| Resin Properties | Resin Specification Data |
|---|---|
| Resin type | Polyethylene |
| Resin sub-type | HDPE |
| Density | 960 kg/m³ |
| Melt flow rate (190° C/5 kg) | 0.25 g/10min |
| Tensile modulus (1 mm/min) | 1100 MPa |
| Tensile stress at yield (50 mm/min) | 25 MPa |
| Tensile strain at break | >600 % |
| Carbon black dispersion | ≥ 3 |
| Oxidation induction time (210° C) | ≥ 20 min |
| Carbon black content | 2.0 - 2.5 % |
| Resistance to slow crack growth (9.2 bar 80° C) | >1000 h |
| Resistance to rapid crack propagation(S4 test, Pc at 0° C, Test pipe 250mm, SDR11) | ≥ 10 bar |
Part Numbers & Specs
Features
High-density polyethylene PE100, PE80, PE4710, PE3408
Your best choice for a leak-free system
High chemical resistance
Impact resistance at low temperatures
Resistant to corrosion and abrasion
Lightweight
Easy installation
Suitable for water, fluids, and slurries
Butt fusion, electrofusion, and mechanical connection ready
Standards & Certs
Manufactured in accordance with:
Downloads
Specification Sheet
Sales Sheet
Catalog
| Part Number | Size | IPS/DIPS | SDR | Description | Actual Size (d1 x d2) | L1 | L2 | L | Weight (lbs.) |
|---|---|---|---|---|---|---|---|---|---|
| 02-BRT-2601068 | 3” IPS x 2” IPS | IPS | 7 | SBI 3" IPS x 2" IPS, Molded Reducing Tee, SDR7, PE100/PE4710, 335psi water/125psi gas, NSF 61 | 3.50 x 2.38 | 3.31 | 2.68 | 11.97 | 2.54 |
| 02-BRT-2601069 | 4” IPS x 2” IPS | IPS | 7 | SBI 4" IPS x 2" IPS, Molded Reducing Tee, SDR7, PE100/PE4710, 335psi water/125psi gas, NSF 61 | 4.50 x 2.38 | 3.43 | 2.68 | 14.16 | 4.63 |
| 02-BRT-2601070 | 4” IPS x 3” IPS | IPS | 7 | SBI 4" IPS x 3" IPS, Molded Reducing Tee, SDR7, PE100/PE4710, 335psi water/125psi gas, NSF 61 | 4.50 x 3.50 | 3.43 | 3.31 | 14.16 | 5.05 |
| 02-BRT-2601071 | 6” IPS x 2” IPS | IPS | 7 | SBI 6" IPS x 2" IPS, Molded Reducing Tee, SDR7, PE100/PE4710, 335psi water/125psi gas, NSF 61 | 6.63 x 2.38 | 4.06 | 2.68 | 17.70 | 12.04 |
| 02-BRT-2601072 | 6” IPS x 3” IPS | IPS | 7 | SBI 6" IPS x 3" IPS, Molded Reducing Tee, SDR7, PE100/PE4710, 335psi water/125psi gas, NSF 61 | 6.63 x 3.50 | 4.06 | 3.31 | 17.70 | 12.41 |
| 02-BRT-2601073 | 6” IPS x 4” IPS | IPS | 7 | SBI 6" IPS x 4" IPS, Molded Reducing Tee, SDR7, PE100/PE4710, 335psi water/125psi gas, NSF 61 | 6.63 x 4.50 | 4.06 | 3.43 | 17.70 | 13.00 |
| 02-BRT-2601074 | 8” IPS x 2” IPS | IPS | 7 | SBI 8" IPS x 2" IPS, Molded Reducing Tee, SDR7, PE100/PE4710, 335psi water/125psi gas, NSF 61 | 8.63 x 2.38 | 4.61 | 2.68 | 20.08 | 24.08 |
| 02-BRT-2601075 | 8” IPS x 3” IPS | IPS | 7 | SBI 8" IPS x 3" IPS, Molded Reducing Tee, SDR7, PE100/PE4710, 335psi water/125psi gas, NSF 61 | 8.63 x 3.50 | 4.61 | 3.31 | 20.08 | 24.39 |
| 02-BRT-2601076 | 8” IPS x 4” IPS | IPS | 7 | SBI 8" IPS x 4" IPS, Molded Reducing Tee, SDR7, PE100/PE4710, 335psi water/125psi gas, NSF 61 | 8.63 x 4.50 | 4.61 | 3.43 | 20.08 | 24.75 |
| 02-BRT-2601077 | 8” IPS x 6” IPS | IPS | 7 | SBI 8" IPS x 6" IPS, Molded Reducing Tee, SDR7, PE100/PE4710, 335psi water/125psi gas, NSF 61 | 8.63 x 6.63 | 4.61 | 4.06 | 20.08 | 26.24 |
| 02-BRT-2601078 | 10” IPS x 4” IPS | IPS | 7 | SBI 10" IPS x 4" IPS, Molded Reducing Tee, SDR7, PE100/PE4710, 335psi water/125psi gas, NSF 61 | 10.75 x 4.50 | 5.71 | 3.43 | 25.98 | 52.12 |
| 02-BRT-2601079 | 10” IPS x 6” IPS | IPS | 7 | SBI 10" IPS x 6" IPS, Molded Reducing Tee, SDR7, PE100/PE4710, 335psi water/125psi gas, NSF 61 | 10.75 x 6.63 | 5.71 | 4.06 | 25.98 | 53.72 |
| 02-BRT-2601080 | 10” IPS x 8” IPS | IPS | 7 | SBI 10" IPS x 8" IPS, Molded Reducing Tee, SDR7, PE100/PE4710, 335psi water/125psi gas, NSF 61 | 10.75 x 8.63 | 5.71 | 4.92 | 25.98 | 56.96 |
| 02-BRT-2601081 | 12” IPS x 6” IPS | IPS | 7 | SBI 12" IPS x 6" IPS, Molded Reducing Tee, SDR7, PE100/PE4710, 335psi water/125psi gas, NSF 61 | 12.75 x 6.63 | 6.50 | 4.06 | 29.72 | 87.68 |
| 02-BRT-2601082 | 12” IPS x 8” IPS | IPS | 7 | SBI 12" IPS x 8" IPS, Molded Reducing Tee, SDR7, PE100/PE4710, 335psi water/125psi gas, NSF 61 | 12.75 x 8.63 | 6.50 | 4.92 | 29.72 | 92.27 |
| 02-BRT-2601083 | 12” IPS x 10” IPS | IPS | 7 | SBI 12" IPS x 10" IPS, Molded Reducing Tee, SDR7, PE100/PE4710, 335psi water/125psi gas, NSF 61 | 12.75 x 10.75 | 6.50 | 5.71 | 29.72 | 97.51 |
| 02-BRT-2601036 | 3” IPS x 2” IPS | IPS | 9 | SBI 3" IPS x 2" IPS, Molded Reducing Tee, SDR9, PE100/PE4710, 250psi water/125psi gas, NSF 61 | 3.50 x 2.38 | 3.31 | 2.68 | 11.97 | 2.10 |
| 02-BRT-2601037 | 4” IPS x 2” IPS | IPS | 9 | SBI 4" IPS x 2" IPS, Molded Reducing Tee, SDR9, PE100/PE4710, 250psi water/125psi gas, NSF 61 | 4.50 x 2.38 | 3.43 | 2.68 | 14.16 | 3.82 |
| 02-BRT-2601038 | 4” IPS x 3” IPS | IPS | 9 | SBI 4" IPS x 2" IPS, Molded Reducing Tee, SDR9, PE100/PE4710, 250psi water/125psi gas, NSF 61 | 4.50 x 3.50 | 3.43 | 3.31 | 14.16 | 4.15 |
| 02-BRT-2601039 | 6” IPS x 2” IPS | IPS | 9 | SBI 4" IPS x 2" IPS, Molded Reducing Tee, SDR9, PE100/PE4710, 250psi water/125psi gas, NSF 61 | 6.63 x 2.38 | 4.06 | 2.68 | 17.70 | 9.93 |
| 02-BRT-2601040 | 6” IPS x 3” IPS | IPS | 9 | SBI 4" IPS x 2" IPS, Molded Reducing Tee, SDR9, PE100/PE4710, 250psi water/125psi gas, NSF 61 | 6.63 x 3.50 | 4.06 | 3.31 | 17.70 | 10.22 |
| 02-BRT-2601041 | 6” IPS x 4” IPS | IPS | 9 | SBI 4" IPS x 2" IPS, Molded Reducing Tee, SDR9, PE100/PE4710, 250psi water/125psi gas, NSF 61 | 6.63 x 4.50 | 4.06 | 3.43 | 17.70 | 10.68 |
| 02-BRT-2601042 | 8” IPS x 2” IPS | IPS | 9 | SBI 4" IPS x 2" IPS, Molded Reducing Tee, SDR9, PE100/PE4710, 250psi water/125psi gas, NSF 61 | 8.63 x 2.38 | 4.61 | 2.68 | 20.08 | 20.08 |
| 02-BRT-2601043 | 8” IPS x 3” IPS | IPS | 9 | SBI 4" IPS x 2" IPS, Molded Reducing Tee, SDR9, PE100/PE4710, 250psi water/125psi gas, NSF 61 | 8.63 x 3.50 | 4.61 | 3.31 | 20.08 | 20.31 |
| 02-BRT-2601044 | 8” IPS x 4” IPS | IPS | 9 | SBI 4" IPS x 2" IPS, Molded Reducing Tee, SDR9, PE100/PE4710, 250psi water/125psi gas, NSF 61 | 8.63 x 4.50 | 4.61 | 3.43 | 20.08 | 20.56 |
| 02-BRT-2601045 | 8” IPS x 6” IPS | IPS | 9 | SBI 4" IPS x 2" IPS, Molded Reducing Tee, SDR9, PE100/PE4710, 250psi water/125psi gas, NSF 61 | 8.63 x 6.63 | 4.61 | 4.06 | 20.08 | 21.70 |
| 02-BRT-2601046 | 10” IPS x 4” IPS | IPS | 9 | SBI 4" IPS x 2" IPS, Molded Reducing Tee, SDR9, PE100/PE4710, 250psi water/125psi gas, NSF 61 | 10.75 x 4.50 | 5.71 | 3.43 | 25.98 | 43.85 |
| 02-BRT-2601047 | 10” IPS x 6” IPS | IPS | 9 | SBI 4" IPS x 2" IPS, Molded Reducing Tee, SDR9, PE100/PE4710, 250psi water/125psi gas, NSF 61 | 10.75 x 6.63 | 5.71 | 4.06 | 25.98 | 45.02 |
| 02-BRT-2601048 | 10” IPS x 8” IPS | IPS | 9 | SBI 4" IPS x 2" IPS, Molded Reducing Tee, SDR9, PE100/PE4710, 250psi water/125psi gas, NSF 61 | 10.75 x 8.63 | 5.71 | 4.92 | 25.98 | 47.54 |
| 02-BRT-2601049 | 12” IPS x 6” IPS | IPS | 9 | SBI 4" IPS x 2" IPS, Molded Reducing Tee, SDR9, PE100/PE4710, 250psi water/125psi gas, NSF 61 | 12.75 x 6.63 | 6.50 | 4.06 | 29.72 | 74.19 |
| 02-BRT-2601050 | 12” IPS x 8” IPS | IPS | 9 | SBI 4" IPS x 2" IPS, Molded Reducing Tee, SDR9, PE100/PE4710, 250psi water/125psi gas, NSF 61 | 12.75 x 8.63 | 6.50 | 4.92 | 29.72 | 78.03 |
| 02-BRT-2601051 | 12” IPS x 10” IPS | IPS | 9 | SBI 4" IPS x 2" IPS, Molded Reducing Tee, SDR9, PE100/PE4710, 250psi water/125psi gas, NSF 61 | 12.75 x 10.75 | 6.50 | 5.71 | 29.72 | 82.16 |
| 02-BRT-2601001 | 3" IPS x 2" IPS | IPS | 11 | SBI 3" IPS x 2" IPS, Molded Reducing Tee, SDR11, PE100/PE4710, 200psi water/100psi gas, NSF 61 | 3.50 x 2.38 | 3.31 | 2.68 | 11.97 | 1.80 |
| 02-BRT-2601002 | 4" IPS x 2" IPS | IPS | 11 | SBI 4" IPS x 2" IPS, Molded Reducing Tee, SDR11, PE100/PE4710, 200psi water/100psi gas, NSF 61 | 4.50 x 2.38 | 3.43 | 2.68 | 14.16 | 3.26 |
| 02-BRT-2601003 | 4" IPS x 3" IPS | IPS | 11 | SBI 4" IPS x 3" IPS, Molded Reducing Tee, SDR11, PE100/PE4710, 200psi water/100psi gas, NSF 61 | 4.50 x 3.50 | 3.43 | 3.31 | 14.16 | 3.54 |
| 02-BRT-2601004 | 6" IPS x 2" IPS | IPS | 11 | SBI 6" IPS x 2" IPS, Molded Reducing Tee, SDR11, PE100/PE4710, 200psi water/100psi gas, NSF 61 | 6.63 x 2.38 | 4.06 | 2.68 | 17.70 | 8.48 |
| 02-BRT-2601005 | 6" IPS x 3" IPS | IPS | 11 | SBI 6" IPS x 3" IPS, Molded Reducing Tee, SDR11, PE100/PE4710, 200psi water/100psi gas, NSF 61 | 6.63 x 3.50 | 4.06 | 3.31 | 17.70 | 8.72 |
| 02-BRT-2601006 | 6" IPS x 4" IPS | IPS | 11 | SBI 6" IPS x 4" IPS, Molded Reducing Tee, SDR11, PE100/PE4710, 200psi water/100psi gas, NSF 61 | 6.63 x 4.50 | 4.06 | 3.43 | 17.70 | 9.10 |
| 02-BRT-2601084 | 8" DIPS x 6" DIPS | DIPS | 11 | SBI 8" DIPS x 6" DIPS, Molded Reducing Tee, SDR11, PE100/PE4710, 200psi water/100psi gas, NSF 61 | 9.05 x 6.90 | 4.72 | 4.13 | 16.00 | 18.60 |
| 02-BRT-2601007 | 8" IPS x 2" IPS | IPS | 11 | SBI 8" IPS x 2" IPS, Molded Reducing Tee, SDR11, PE100/PE4710, 200psi water/100psi gas, NSF 61 | 8.63 x 2.38 | 4.61 | 2.68 | 20.08 | 17.32 |
| 02-BRT-2601008 | 8" IPS x 3" IPS | IPS | 11 | SBI 8" IPS x 3" IPS, Molded Reducing Tee, SDR11, PE100/PE4710, 200psi water/100psi gas, NSF 61 | 8.63 x 3.50 | 4.61 | 3.31 | 20.08 | 17.50 |
| 02-BRT-2601009 | 8" IPS x 4" IPS | IPS | 11 | SBI 8" IPS x 4" IPS, Molded Reducing Tee, SDR11, PE100/PE4710, 200psi water/100psi gas, NSF 61 | 8.63 x 4.50 | 4.61 | 3.43 | 20.08 | 17.70 |
| 02-BRT-2601010 | 8" IPS x 6" IPS | IPS | 11 | SBI 8" IPS x 6" IPS, Molded Reducing Tee, SDR11, PE100/PE4710, 200psi water/100psi gas, NSF 61 | 8.63 x 6.63 | 4.61 | 4.06 | 20.08 | 18.60 |
| 02-BRT-2601011 | 10" IPS x 4" IPS | IPS | 11 | SBI 10" IPS x 4" IPS, Molded Reducing Tee, SDR11, PE100/PE4710, 200psi water/100psi gas, NSF 61 | 10.75 x 4.50 | 5.71 | 3.43 | 25.98 | 38.20 |
| 02-BRT-2601012 | 10" IPS x 6" IPS | IPS | 11 | SBI 10" IPS x 6" IPS, Molded Reducing Tee, SDR11, PE100/PE4710, 200psi water/100psi gas, NSF 61 | 10.75 x 6.63 | 5.71 | 4.06 | 25.98 | 39.11 |
| 02-BRT-2601013 | 10" IPS x 8" IPS | IPS | 11 | SBI 10" IPS x 8" IPS, Molded Reducing Tee, SDR11, PE100/PE4710, 200psi water/100psi gas, NSF 61 | 10.75 x 8.63 | 5.71 | 4.92 | 25.98 | 41.15 |
| 02-BRT-2601014 | 12" IPS x 6" IPS | IPS | 11 | SBI 12" IPS x 6" IPS, Molded Reducing Tee, SDR11, PE100/PE4710, 200psi water/100psi gas, NSF 61 | 12.75 x 6.63 | 6.50 | 4.06 | 29.72 | 64.98 |
| 02-BRT-2601015 | 12" IPS x 8" IPS | IPS | 11 | SBI 12" IPS x 8" IPS, Molded Reducing Tee, SDR11, PE100/PE4710, 200psi water/100psi gas, NSF 61 | 12.75 x 8.63 | 6.50 | 4.92 | 29.72 | 68.33 |
| 02-BRT-2601031 | 12" IPS x 10" IPS | IPS | 11 | SBI 12" IPS x 10" IPS, Molded Reducing Tee, SDR11, PE100/PE4710, 200psi water/100psi gas, NSF 61 | 12.75 x 10.75 | 6.50 | 5.71 | 29.72 | 71.74 |
| 02-BRT-2601016 | 3" IPS x 2" IPS | IPS | 17 | SBI 3" IPS x 2" IPS, Molded Reducing Tee, SDR17, PE100/PE4710, 125psi water/64psi gas, NSF 61 | 3.50 x 2.38 | 3.31 | 2.68 | 11.97 | 1.29 |
| 02-BRT-2601017 | 4" IPS x 2" IPS | IPS | 17 | SBI 4" IPS x 2" IPS, Molded Reducing Tee, SDR17, PE100/PE4710, 125psi water/64psi gas, NSF 61 | 4.50 x 2.38 | 3.43 | 2.68 | 14.16 | 2.32 |
| 02-BRT-2601018 | 4" IPS x 3" IPS | IPS | 17 | SBI 4" IPS x 3" IPS, Molded Reducing Tee, SDR17, PE100/PE4710, 125psi water/64psi gas, NSF 61 | 4.50 x 3.50 | 3.43 | 3.31 | 14.16 | 2.49 |
| 02-BRT-2601019 | 6" IPS x 2" IPS | IPS | 17 | SBI 6" IPS x 2" IPS, Molded Reducing Tee, SDR17, PE100/PE4710, 125psi water/64psi gas, NSF 61 | 6.63 x 2.38 | 4.06 | 2.68 | 17.70 | 6.04 |
| 02-BRT-2601020 | 6" IPS x 3" IPS | IPS | 17 | SBI 6" IPS x 3" IPS, Molded Reducing Tee, SDR17, PE100/PE4710, 125psi water/64psi gas, NSF 61 | 6.63 x 3.50 | 4.06 | 3.31 | 17.70 | 6.19 |
| 02-BRT-2601021 | 6" IPS x 4" IPS | IPS | 17 | SBI 6" IPS x 4" IPS, Molded Reducing Tee, SDR17, PE100/PE4710, 125psi water/64psi gas, NSF 61 | 6.63 x 4.50 | 4.06 | 3.43 | 17.70 | 6.44 |
| 02-BRT-2601022 | 8" IPS x 2" IPS | IPS | 17 | SBI 8" IPS x 2" IPS, Molded Reducing Tee, SDR17, PE100/PE4710, 125psi water/64psi gas, NSF 61 | 8.63 x 2.38 | 4.61 | 2.68 | 20.08 | 12.66 |
| 02-BRT-2601023 | 8" IPS x 3" IPS | IPS | 17 | SBI 8" IPS x 3" IPS, Molded Reducing Tee, SDR17, PE100/PE4710, 125psi water/64psi gas, NSF 61 | 8.63 x 3.50 | 4.61 | 3.31 | 20.08 | 12.76 |
| 02-BRT-2601024 | 8" IPS x 4" IPS | IPS | 17 | SBI 8" IPS x 4" IPS, Molded Reducing Tee, SDR17, PE100/PE4710, 125psi water/64psi gas, NSF 61 | 8.63 x 4.50 | 4.61 | 3.43 | 20.08 | 12.86 |
| 02-BRT-2601025 | 8" IPS x 6" IPS | IPS | 17 | SBI 8" IPS x 6" IPS, Molded Reducing Tee, SDR17, PE100/PE4710, 125psi water/64psi gas, NSF 61 | 8.63 x 6.63 | 4.61 | 4.06 | 20.08 | 13.39 |
| 02-BRT-2601026 | 10" IPS x 4" IPS | IPS | 17 | SBI 10" IPS x 4" IPS, Molded Reducing Tee, SDR17, PE100/PE4710, 125psi water/64psi gas, NSF 61 | 10.75 x 4.50 | 5.71 | 3.43 | 25.98 | 28.68 |
| 02-BRT-2601027 | 10" IPS x 6" IPS | IPS | 17 | SBI 10" IPS x 6" IPS, Molded Reducing Tee, SDR17, PE100/PE4710, 125psi water/64psi gas, NSF 61 | 10.75 x 6.63 | 5.71 | 4.06 | 25.98 | 29.16 |
| 02-BRT-2601028 | 10" IPS x 8" IPS | IPS | 17 | SBI 10" IPS x 8" IPS, Molded Reducing Tee, SDR17, PE100/PE4710, 125psi water/64psi gas, NSF 61 | 10.75 x 8.63 | 5.71 | 4.92 | 25.98 | 30.42 |
| 02-BRT-2601029 | 12" IPS x 6" IPS | IPS | 17 | SBI 12" IPS x 6" IPS, Molded Reducing Tee, SDR17, PE100/PE4710, 125psi water/64psi gas, NSF 61 | 12.75 x 6.63 | 6.50 | 4.06 | 29.72 | 49.44 |
| 02-BRT-2601030 | 12" IPS x 8" IPS | IPS | 17 | SBI 12" IPS x 8" IPS, Molded Reducing Tee, SDR17, PE100/PE4710, 125psi water/64psi gas, NSF 61 | 12.75 x 8.63 | 6.50 | 4.92 | 29.72 | 52.00 |
| 02-BRT-2601032 | 12" IPS x 10" IPS | IPS | 17 | SBI 12" IPS x 10" IPS, Molded Reducing Tee, SDR17, PE100/PE4710, 125psi water/64psi gas, NSF 61 | 12.75 x 10.75 | 6.50 | 5.71 | 29.72 | 54.25 |
